Built-in cables
Four USB-C expansion cables pull out from the front panel and rewind inside
Power & Charging / 80D

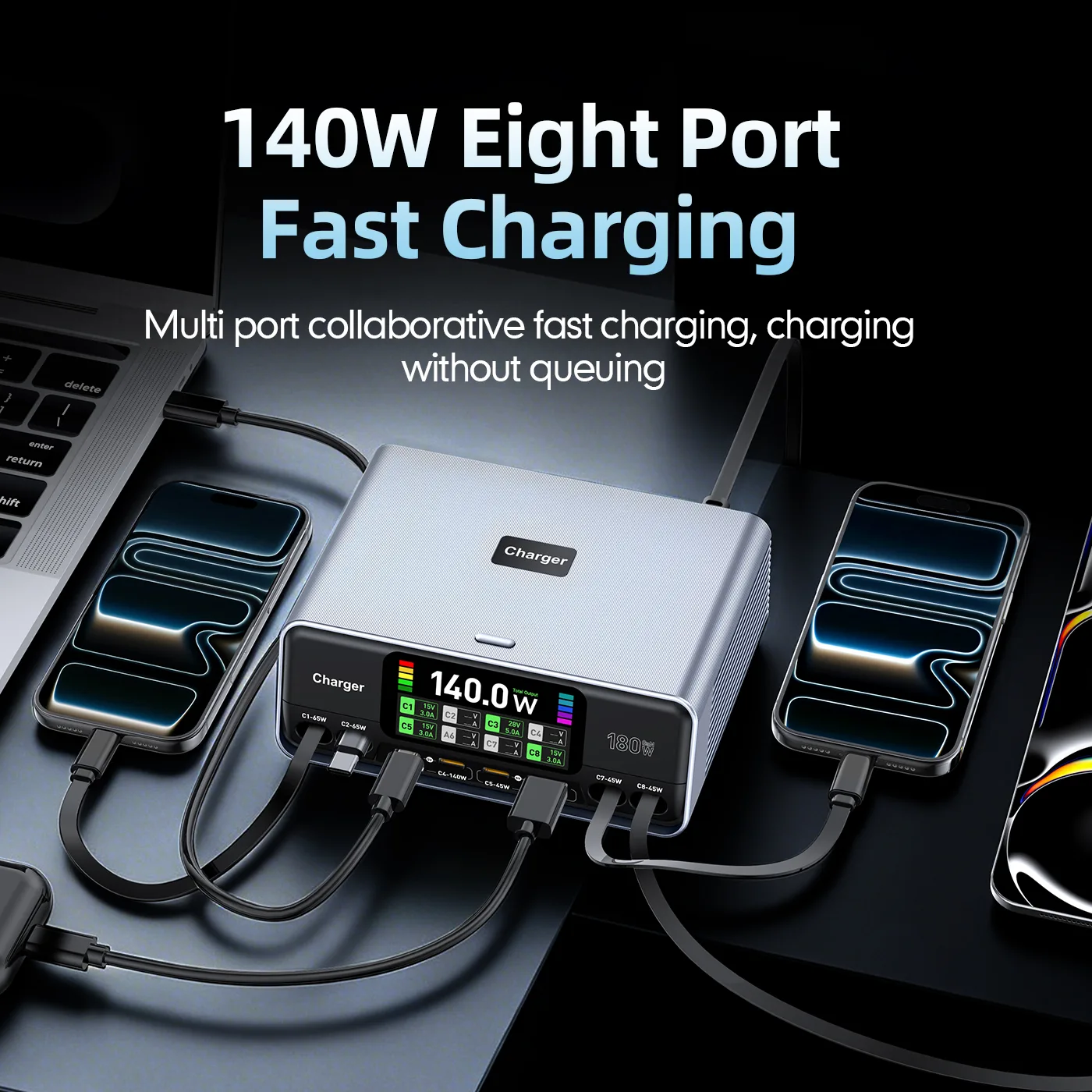

8-Port 140 W Desktop Charger with Front Expansion Cables
Pull a cable from the front panel and charge.
Four front pull-out expansion cablesSmart colour display with per-port readoutUp to 140 W single-port output
- Total output
- Up to 140 (factory-rated) W
- USB-C1 / C2
- 5 V 3 A / 9 V 3 A / 12 V 3 A / 15 V 3 A / 20 V 3.25 A
- USB-C3 / C4
- 5 V 3 A / 9 V 3 A / 12 V 3 A / 15 V 3 A / 20 V 5 A / 28 V 5 A
For product selection and business enquiries. Share your market and expected quantity.
A CLOSER LOOK
Pull a cable from the front panel and charge.
An eight-port desktop charger that keeps its four expansion cables in the front face: pull one out, charge, and let it rewind back into the body — no loose cables across the desk. The smart colour display reports live voltage and current for every port plus total output, and a single USB-C port reaches up to 140 W (factory-rated). GaN technology, PD/QC and UFCS protocol support and a spray-metal silver finish make it a tidy hub for shared workspaces.
Display
Colour screen shows live per-port voltage/current and total output
Output
Eight ports; up to 140 W from a single USB-C port (factory-rated)
THE DETAILS
Know your 80D.
Specifications
- Product class
- Desktop multi-port charger with smart display
- Model
- 80D
- Total output
- Up to 140 (factory-rated) W
- USB-C1 / C2
- 5 V 3 A / 9 V 3 A / 12 V 3 A / 15 V 3 A / 20 V 3.25 A
- USB-C3 / C4
- 5 V 3 A / 9 V 3 A / 12 V 3 A / 15 V 3 A / 20 V 5 A / 28 V 5 A
- USB-C5 / C7 / C8
- 5 V 3 A / 9 V 3 A / 12 V 3 A / 15 V 3 A / 20 V 2.25 A
- USB-A6
- 5 V 3 A / 9 V 3 A / 12 V 2.5 A / 20 V 1.5 A
- Dual-port sharing — examples
- C1+C2: 65 W + 65 W; C1+C3: 65 W + 100 W; C3+C5: 100 W + 45 W
- Three-port sharing — examples
- C1+C2+C3: 65 W + 65 W + 30 W; A6+C7+C8: 30 W + 45 W + 45 W
- Four-port sharing
- C1+C2+C3+C5: 65 W + 45 W + 30 W + 20 W
- Five-port sharing
- C1+C2+C3+C4+C5: 65 W + 65 W + 5 V 1.5 A × 2 + 20 W
- Built-in cables
- Four front pull-out USB-C expansion cables
- Display
- Colour LCD, per-port voltage/current plus total output
- Protocols
- PD / QC / UFCS (factory-rated)
- Input
- AC 100–240 V, 50/60 Hz
- Dimensions
- 105 × 89 × 39 mm
- Colour
- Silver
- In the box
- Charger, instruction manual
All specifications are factory-rated values provided by the manufacturer and are subject to confirmation by sample testing. Output power and charging figures are measured under controlled conditions and vary with the connected device, cable and environment.
